Description
Product specifications:
Hardware Features:
Ports: 5× 10/100/1000 Mbps RJ45 (Auto-Negotiation, Auto MDI/MDIX)
Fan: Fanless (silent operation)
Power: External Adapter (9VDC / 0.6A)
Power Consumption: Max 2.4W
Heat Dissipation: Max 8.2 BTU/h
Dimensions: 140 × 88 × 23 mm (5.5 × 3.5 × 0.9 in)
Software Features:
Switching Method: Store-and-Forward
Advanced: Green Tech, 802.3x Flow Control, Back Pressure, 802.1p/DSCP QoS
Other Info:
Certifications: FCC, RoHS

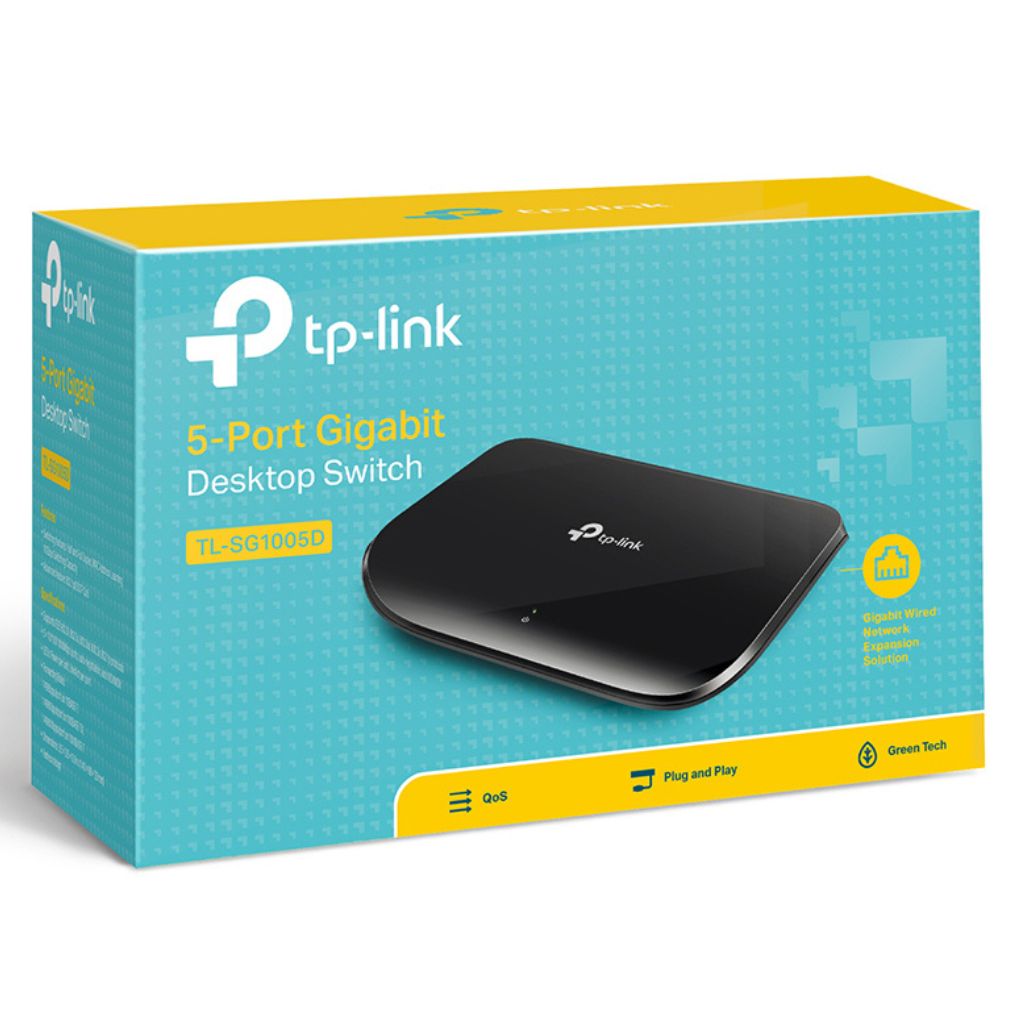

In the Box: TL-SG1005D, Power Adapter, Installation Guide
Environment:
Operating Temp: 0–40? (32–104?)
Storage Temp: -40–60? (-40–140?)
Humidity (Operating/Storage): 10–90% / 5–90% (non-condensing)
Product overview:
5 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX.
Green Ethernet technology saves power consumption.
IEEE 802.3x flow control provides reliable data transfer.
Plastic case, desktop or wall-mounting design.
Plug and play, no configuration required.
