Description

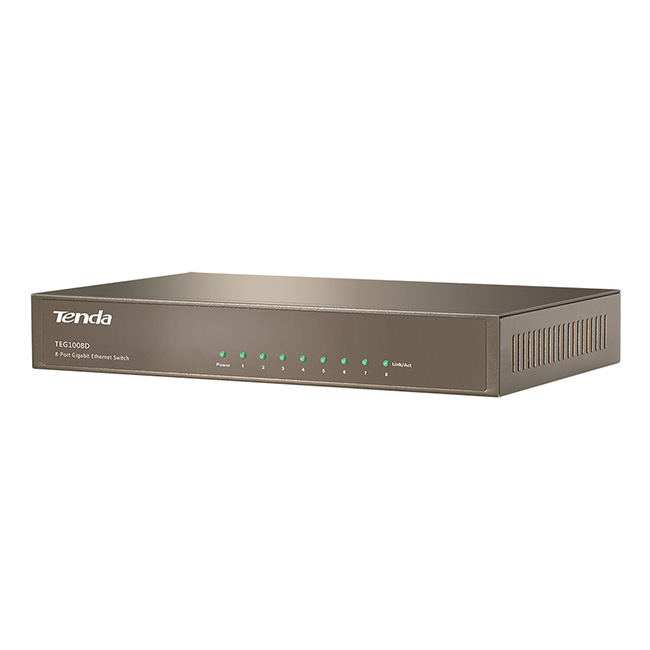

TEG1008D is an unmanaged gigabit switch with 8 10/100/1000Mbps auto-negotiation
RJ45 ports. Wire-speed forwarding rate of each port is up to 1000Mbps. TEG1008D
supports 9k Jumbo Frame to increase the forwarding rate of large files in order
to boost network performance . Lightning proof level is up to 4KV to ensure the
stability and safety when you surf the internet. With bulit -in latest Broadcom
chip , fanless and greenlumi design , TEG1008D is the ideal choice for small &
medium enterprises,schools , small offices to upgrade gigabit network.
- Throughout: 11.9Mpps
- Backbound Bandwidth: 16Gbps / non-blocking
- Power Consumption: -4W
- Power Requirements: 100-240V AC, 50/60Hz
- Power Adapter: 9V DC, 1A
- Switch Processing Scheme: Store-and-Forward
- Address Table: 4K
- Jumbo packet size: 9K
-
Flow Control: Back pressure for half duplex, IEEE 802.3x pause of frame
for full duplex - Dimension: 186.7mm×106.7mm×33.3mm(W x D x H)
- Weight: -1kg
- Certification: FCC , CE , ROHS
- Standard&Protocol: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x
- Port: Loop Detection/Prevention Inductive Lightning Protection: 4KV
- Temperature: Operating: 0~50 degrees C Storage: -10~70 degrees C
- Humidity: Operating: 5~95% Storage: 5~95% (Non-condensing)
